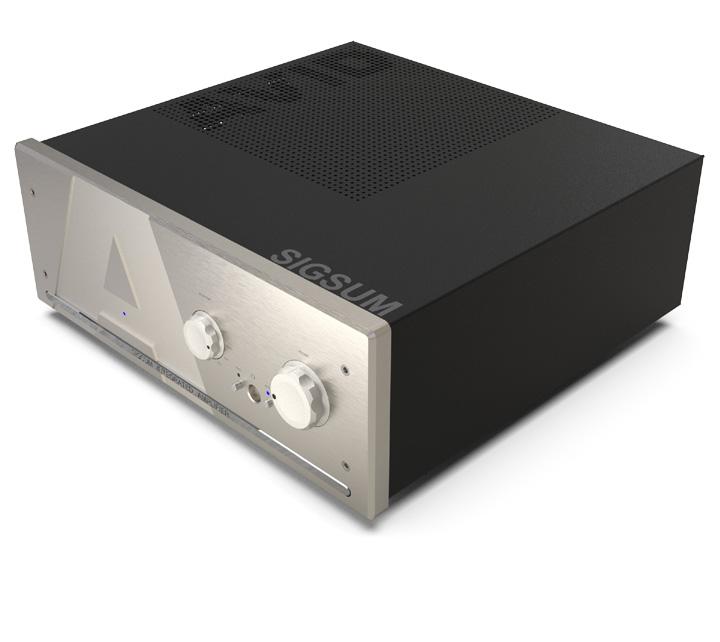

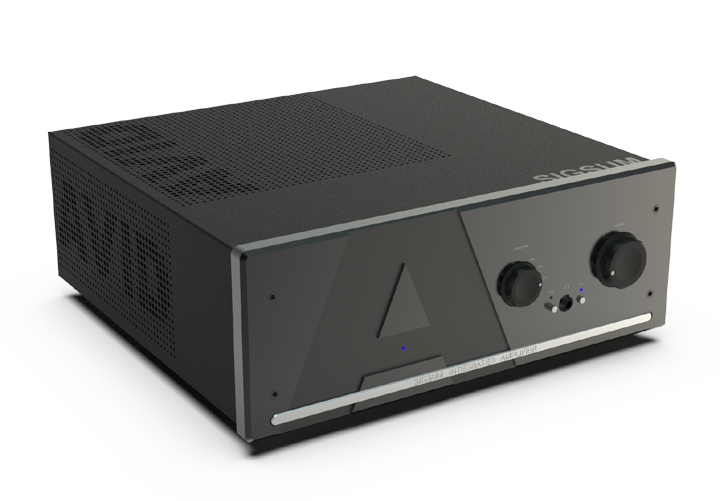

Sigsum Integrated

Sigsum Integrated

Driven by sound quality and our uncompromising approach to offer the best in class, the sensational SIGSUM Integrated was conceived.

Our single chassis amplifier offers unparalleled performance for those that desire less clutter or with demands on their dwellings.

"Music tends to flow with no effort at all"
- Paul Rigby

Key Features

  • ALPS RK50 Volume Control
  • Pulsus Integated Phono
  • Headphone Amplifier
  • XLR/RCA Connections

Musical Obsession

SIGSUM swiftly dispels any preconception that single chassis amplifiers limit performance. Condensing our reference designs into class leading premium products is our forte and its clarity and power will expose a musical revelation.

Lurking behind our trademark embellished front panel we have distilled, condensed and shoe-horned our reference technology into a singular monument to convey true musicality.

"There is no doubt, the AVID is an exceptional amplifier"
- Paul Rigby

awesome

awesome

Incorporating our Pulsus phonostage solidifies our vinyl heritage and with a dedicated mains transformer giving independent power to each channel, your favourite records will sound outstandingly realistic.

Independently powering the Pre and dual mono amplifiers is a phenomenally large mains transformer and capacitor reservoir, delivering an unadulterated sound through the worlds best volume control to your ears. Simply Awesome.

"A total triumph. Brilliant, even"
- Paul Rigby

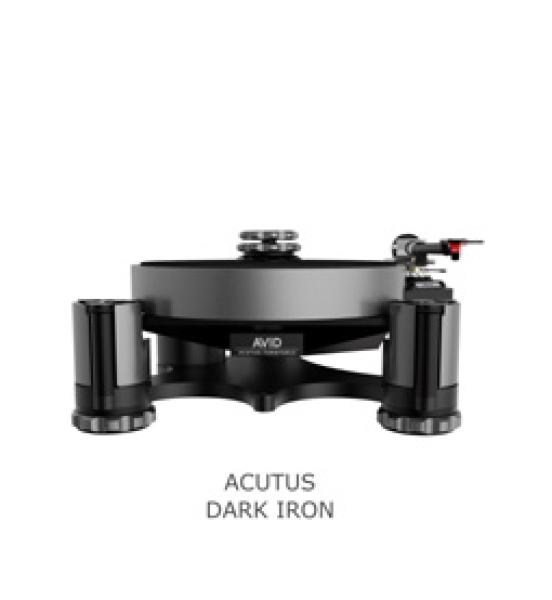

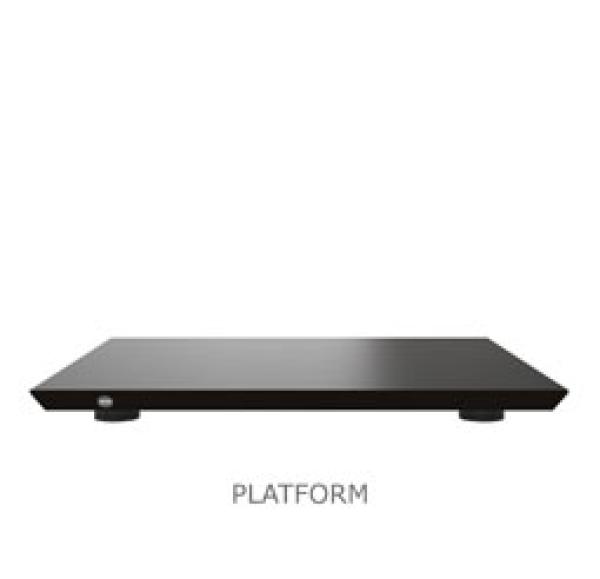

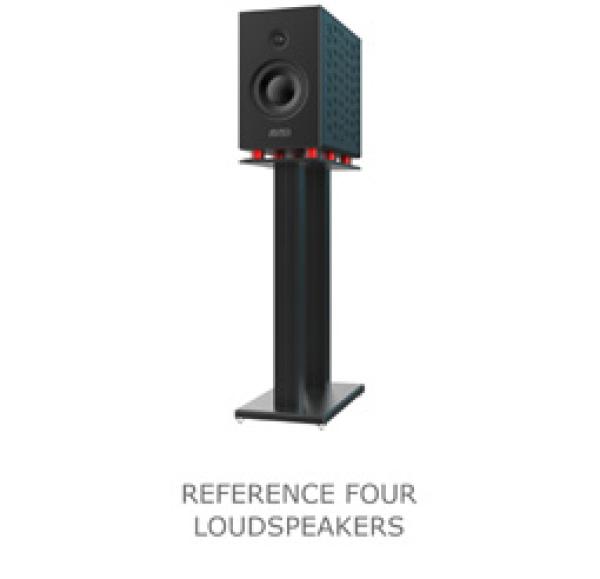

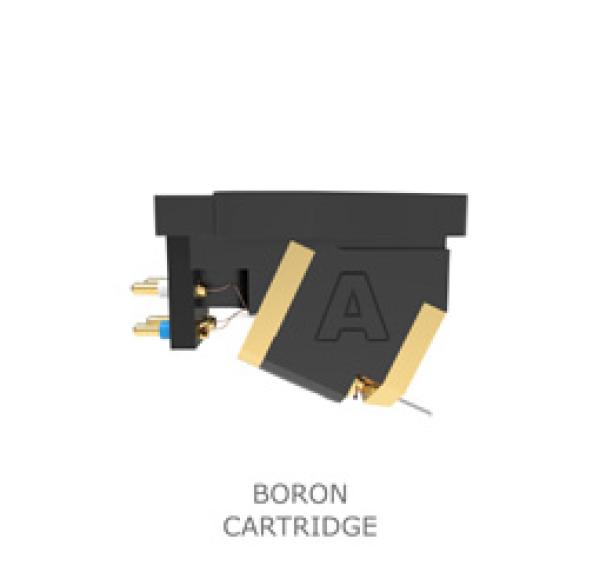

Related Products

What's inside

Retaining possibly the world’s best control, the ALPS RK50 allows you hear every detail with such life and realism. Bespoke circuit design and components allows faithful reproduction with limitless headroom and dual mono amplifiers directly scaled down reference models have the ability to drive all loudspeakers comfortably.

And not forgetting our vinyl roots the built-in phonostage is the same as our award winning Pulsus phonostage. The passive RIAA circuit using high-end capacitors, helps maintain linearity of reproduction and not wanting to limit sound quality we have installed its own 35va mains transformer giving independent power to each channel. Fully flexible for any cartridge with gain and resistance easily adjustable.

A colossal 1100VA transformer and huge capacitors totalling 132,000uF, give an electrical reservoir the prodigious reserves that allow you to hear the slam and low frequency of live music, whilst retaining control to unearth detail and subtilty you have never before experienced.

A dominating piece of audio sculpture, commanding attention with our logo carved into the 20mm solid aluminium front panel, there is a feeling of engineered solidity that is also expressed in the sound reproduction. The heavy gauge steel chassis and cover offer valued screening against environmental noise so that even the smallest musical detail is revealed. The logo hole patterning and SIGSUM name are majestically displayed for that final touch of elegance.

Specifications

OUTPUT:

110W 8Ω

HARMONIC DISTORTION:

0.003% (80% POWER 8 OHMS 1KHz)

LOUDSPEAKER IMPEDANCE:

4-16Ω

PHONO INPUTS:

2x RCA

GAIN:

48dB – 60dB – 70dB

INPUT RESISTANCE:

100R – 300R - 500R – 1K – 5K – 10K – 47K

INPUT CAPACITANCE:

100pF – 200pF – 500pF

LINE INPUTS:

4x XLR  4x RCA

OUTPUTS:

4x GOLD PLATED HIGH CURRENT

LINE LEVEL OUTPUT:

2x RCA

HEADPHONE OUTPUT:

10 V RMS

HEADPHONE RANGE:

20 — 600Ω

INPUT VOLTAGE:

115V OR 230V AC

DIMENSIONS:

471 x 500 x 190mm (WXDXH)

NET WEIGHT:

31.2KG (69LB)
